Optimizing Data Synchronization between SQL Server and MongoDB for Enhanced Performance

As data management becomes increasingly complex, organizations are adopting hybrid database systems to efficiently handle diverse workloads and data types. SQL Server, a robust relational database for structured data, and MongoDB, a leading NoSQL database for flexible, schema-less document storage, are commonly paired to meet these evolving data requirements. By leveraging the strengths of both systems, organizations can better manage both structured and unstructured data to support more sophisticated business processes. However, the key to success in this approach lies in synchronizing these databases efficiently, despite their inherent differences in data structures, query languages, and consistency models.

At PIT Solutions, we have engineered a seamless synchronization solution that optimizes performance and ensures data accuracy, empowering our clients to achieve operational excellence.

Tackling the Challenges of Hybrid Data Management

In one of our recent engagements, a client was relying on SQL Server to manage a wide array of user data stored across multiple relational tables. This data included detailed records such as personal information, work history, job roles, and educational backgrounds. As the data in the relational database grew in size, generating reports became increasingly complex and time-consuming. The client required a more efficient solution to speed up report generation and streamline data retrieval.

To address this issue, we introduced MongoDB alongside SQL Server. By aggregating the data from multiple SQL Server tables and storing it in MongoDB as a single, consolidated collection, we significantly reduced query complexity and drastically improved the speed of report generation. The main challenge, however, was ensuring seamless data synchronization between the two systems, maintaining consistency while maximizing performance.

Key Synchronization Challenges Between SQL Server and MongoDB

Synchronizing SQL Server and MongoDB presents several key challenges that need to be addressed to ensure optimal performance and consistency:

1. Data Model Discrepancies: SQL Server uses a relational schema, while MongoDB utilizes a flexible, document-based structure. Mapping these different models requires careful planning and expertise.
2. Change Tracking: Ensuring that changes made in SQL Server—whether inserts, updates, or deletions—are accurately reflected in MongoDB is critical.
3. Consistency without Compromise: Achieving data consistency across both systems while avoiding performance bottlenecks is a crucial balancing act.

Our Custom Data Synchronization Solution

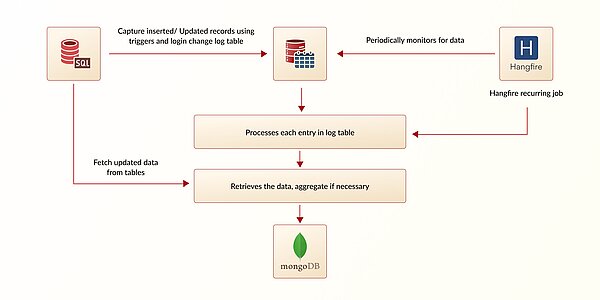

At PIT Solutions, we developed a tailored synchronization solution designed to address these specific challenges. Our solution combines SQL Server triggers, a dedicated change log, and a recurring background job, all managed via Hangfire, a robust job-scheduling library.

• Entity Mapping and Data Modeling: We identified the core entities to be synchronized and mapped relationships between SQL Server’s structured tables and MongoDB’s document collections. This allowed us to create a smooth translation between data models without compromising performance.
• Tracking Data Changes with SQL Triggers: SQL Server triggers capture the primary keys of newly inserted or updated records and log these changes in a change log table. This table acts as a queue for pending synchronization jobs, ensuring that no update is missed.
• Background Job-Driven Synchronization: A background job, managed by Hangfire, periodically processes entries from the change log. For each entry, it retrieves the updated data from SQL Server, aggregates it if necessary, and updates MongoDB accordingly. The job either creates new MongoDB documents or updates existing ones, ensuring real-time synchronization between the databases.

Scalability and Enhanced Synchronization Features

In addition to automatic synchronization, our solution offers manual sync endpoints, designed to handle bulk data transfers and initial migrations. This feature is particularly useful for migrating large datasets, such as user information exceeding 100,000 records, from SQL Server to MongoDB. The manual syncs can be triggered through tools like Swagger or Postman and operate using the same logic as our automated processes, ensuring consistency across both systems.

To ensure scalability as data volumes grow, we configured the job to process a defined number of records per run. This ensures that even with large datasets, system performance remains unaffected.

Real-Time Monitoring and Consistency Assurance

To ensure synchronization reliability, we implemented a continuous monitoring system based on the change log table. Failed sync attempts are automatically retried in subsequent cycles, with errors logged for review and resolution. This proactive monitoring approach ensures that our clients experience minimal downtime or data inconsistencies.

Conclusion

By developing and deploying a comprehensive hybrid synchronization solution between SQL Server and MongoDB, PIT Solutions has enabled clients to harness the strengths of both relational and NoSQL databases. Our solution ensures real-time data updates, offers robust performance improvements, and scales effortlessly as the system grows. With both automatic and manual synchronization options, we offer a flexible, adaptable framework for managing complex data environments.

Our proven expertise in hybrid data management not only optimizes system performance but also positions our clients to fully embrace modern database technologies, enabling faster decision-making and improved operational efficiency.
